Machine 153

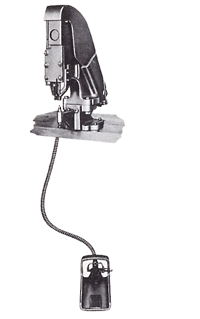

The hand fed 153 rivet setting machine has been used with special success in the assembly of tubular steel furniture, baby carriages and ladders. Excellent results have also been achieved in a number of other industries.

Adjusting the machine for different lengths is simple, making it eminently suitable for short production runs. The basic machine is designed to handle rivets up to 16mm (5/8") long and a modified version is available to handle rivets up to 41.27mm (1 5/8") long.

Normal Setting Capacity

MAXIMUM LENGTH :
Standard Machine- 16mm (5/8")
With Special Pocket Arrangement- 41.27 mm (1.5/8")
MAXIMUM SETTING FORCE:
2268 KGF (5000lbf)

Nominal Diameter	Semi-Tubular		Tubular		Bifurcated
	mm	ins	mm	ins	mm	ins
STEEL & BRASS Maximum Minimum	6.30 2.70	.250 .106	.250 .106	.250 .106	.250 .106	.250 .106
COPPER & ALUMINIUM Maximum Minimum	.250 .106	.250 .106	.250 .106	.250 .106	.250 .106	.250 .106

Automatic Feed

Both the basic and modified version of the 153 machine are available with automatic feed, thereby increasing the scope of the machine and making it more suitable for high volume and long production runs.

Technical Data:

FEED: Hand or Automatic
CONTROL: Foot Operated (pneumatic valve)
MOUNTING: Bench
GUARDING: A tooling area guard which has been developed in co-operation with the factory Inspectorate is available as an optional extra.
AIR PRESSURE: 5.6 kgf per cm² (80 lb. per in²)

Other Data

STROKE LENGTH 57mm
ANVIL HEIGHT from bench 117mm (4.5/8")
AREA REQUIRED 203 x 388 mm (8" x 15.1/4")
SETTING CYCLE TIME: 1 Sec.
WEIGHT (Approx.) Standard Model- 67 kg (146lb)
WEIGHT (Approx.)with Automatic Feed- 84 kg (186lb)
