Rivets
Semi-Tubular /
P.T. Rivets
Bifurcated or Split
Rivets
Self-Piercing
Rivets
Clutch and brake
lining Rivets
Fully Tubular
Rivets
Solid
Rivets
Semi-Tubular
And P.T. Rivets
Imperial Data sheet
(Metric Data sheet)

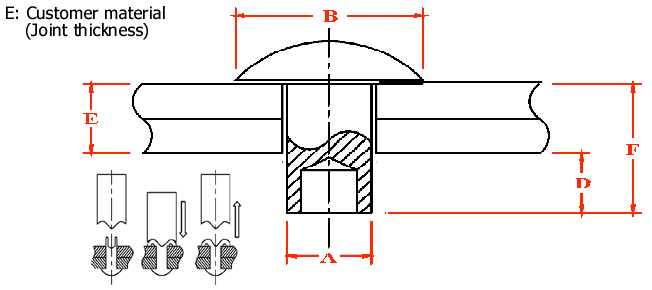

RIVET GAUGE
SHANK DIA. A
HEAD DIA. B
OVAL HEAD
DEPTH
SHANK LENGTH 'F' TOL. +/-
CLINCH (PT) ALLOWANCE 'D'
RECOMMENDED HOLE SIZE
IMP
METRIC
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
18
1.2
.046/.048
1.17/1.22
.097/.103
2.46/2.62
.012/.015
0.30/.038
0.007
0.18
0.025
0.64
.050/.052 1.27/1.32
17
1.4
.054/.056
1.37/1.42
.127/.135
3.23/3.43
.017/.021
0.43/0.53
0.007
0.18
0.031
0.79
.058/.060 1.47/1.52
1/16
1.6
.061/.064
1.55/1.63
.127/.135
3.23/3.43
.020/.024
0.51/0.61
0.007
0.18
0.039
0.99
.066/.068 1.68/1.73
16
1.7
.065/.068
1.65/1.73
.127/.135
3.23/3.43
.020/.024
0.51/0.61
0.007
0.18
0.043
1.09
.070/.072 1.78/1.83
15
1.9
.072/.075
1.83/1.90
.152/.161
3.86/4.09
.026/.030
0.66/0.76
0.007
0.18
0.047
1.19
.078/.080 1.98/2.03
14.1/2
2.0
.078/.081
1.98/2.06
.152/.161
3.86/4.09
.026/.030
0.66/0.76
0.007
0.18
0.051
1.29
.085/.087 2.16/2.21
14
2.2
.085/.089
2.16/2.26
.152/.161
3.86/4.09
.026/.030
0.66/0.76
0.008
0.20
0.055
1.40
.093/.095 2.36/2.41
13
2.35
.090/.094
2.30/2.40
.181/.192
4.60/4.88
.030/.035
0.76/0.89
0.011
0.28
0.063
1.60
.098/.100 2.49/2.54
12.1/2
2.5
.097/.101
2.45/2.55
.181/.192
4.60/4.88
.030/.035
0.76/0.89
0.011
0.28
0.067
1.70
.105/.107 2.67/2.72
12
2.7
.104/.108
2.64/2.74
.212/.222
5.38/5.64
.036/.040
0.91/1.02
0.011
0.28
0.071
1.80
.112/.114 2.84/2.90
11
3.0
.117/.121
2.97/3.07
.212/.222
5.38/5.64
.036/.040
0.91/1.02
0.011
0.28
0.079
2.00
.125/.127 3.17/3.23
1/8
3.15
.122/.126
3.10/3.20
.212/.222
5.38/5.64
.036/.040
0.91/1.02
0.011
0.28
0.087
2.21
.130/.132 3.30/3.35
10
3.25
.126/.130
3.20/3.30
.213/.229
5.38/5.64
.036/.040
0.91/1.02
0.011
0.28
0.091
2.31
.134/.136 3.40/3.45
9.1/2
3.6
.140/.144
3.56/3.66
.307/.319
7.80/8.10
.047/.054
1.19/1.37
0.011
0.28
0.098
2.49
.150/.152 3.81/3.86
9
3.9
.150/.155
3.81/3.94
.307/.319
7.80/8.10
.047/.054
1.19/1.37
0.011
0.28
0.106
2.69
.161/.163 4.08/4.14
8
4.15
.160/.165
4.06/4.19
.307/.319
7.80/8.10
.047/.054
1.19/1.37
0.011
0.28
0.114
2.90
.171/.173 4.34/4.40
7
4.4
.171/.176
4.34/4.47
.339/.351
8.61/8.91
.052/.056
1.32/1.42
0.014
0.36
0.122
3.10
.182/.184 4.62/4.67
3/16
4.7
.183/.188
4.65/4.77
.370/.385
9.40/9.78
.057/.061
1.44/1.55
0.014
0.36
0.133
3.38
.196/.198 4.98/5.03
6
5.0
.195/.200
4.96/5.08
.370/.385
9.40/9.78
.057/.061
1.44/1.55
0.014
0.36
0.142
3.61
.205/.208 5.21/5.28
5
5.4
.210/.215
5.33/5.46
.432/.447
10.97/11.35
.066/.077
1.68/1.96
0.014
0.36
0.153
3.89
.223/.226 5.67/5.74
4
6.0
.232/.237
5.89/6.02
.488/.512
12.40/13.00
.092/.097
2.34/2.46
0.014
0.36
0.165
4.19
.245/.248 6.23/6.30
3
6.3
.245/.250
6.22/6.35
.488/.512
12.40/13.00
.092/.097
2.34/2.46
0.014
0.36
0.177
4.50
.258/.261 6.55/6.63
5/16
7.9
.307/.312
7.80/7.92
.555/.575
14.10/14.60
.100/.105
2.54/2.66
0.014
0.36
0.218
5.54
3/8
9.5
.370/.375
9.40/9.53
.680/.700
17.27/17.78
.108/.113
2.74/2.87
0.014
0.36
0.263
6.68
Materials available:
Steel, Brass, Copper, Aluminium Alloy, Stainless Steel (430, 420, 394, 316 & 304 type) and Aluminium Alloy.
