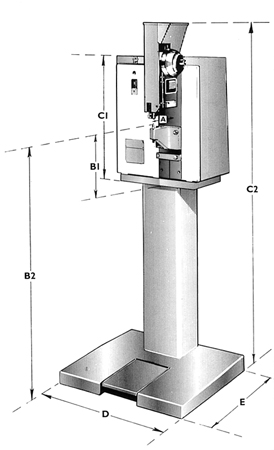

70/10 Machine Dimensions
A
B1
B2
C1
C2
D
E
mm
111
203
1016
610
1422
559
482
Inches
4.4
8
40
24
56
22
19
Approx Weight
Length of Strokes
Without
With Pedestral
Single Head
79kg
174lb
115kg
250lb
32mm
1.1/4"
Twin Head
90kg
197lb
124kg
273lb
32mm
1.1/4"
* No work area guards are shown due to the fact that normal machine daylight does not exceed the statutory 6mm maximum. Should a larger work area be required approved guard will be fitted.
70/10 Maximum Rivet Setting Capacity
Steel
Brass
Copper
Aluminium and light alloy
Max
Rivet
Ø
Semi
Tubular
Tubular
Bifurcated
Semi
Tubular
Tubular
Bifurcated
Semi
Tubular
Tubular
Bifurcated
Semi
Tubular
Tubular
Bifurcated
Gauge
15
15
14
15
15
14
14
14
14
11
N/A
N/A
Inches
.075/.072
.075/.072
.089/.085
.075/.072
.075/.072
.089/.085
.089/.0853
.089/.085
.089/.085
.121/.117
N/A
N/A
mm
1.91/1.83
1.91/1.83
2.26/2.16
1.91/1.83
1.91/1.83
2.26/2.16
2.26/2.16
2.26/2.16
2.26/2.16
3.07/2.97
N/A
N/A
Eyelets: Maximum 3/16 gauge; 0.187 inches; 4.75mm
