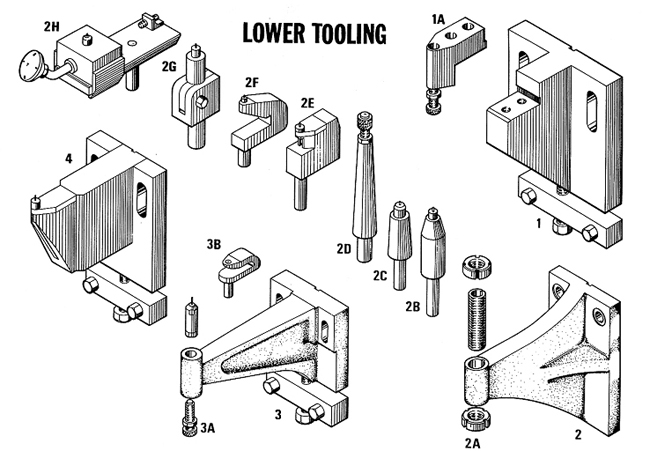

Lower Tooling
1- STEEL ARM
1A- STEEL NOSE

2- POST BRACKET
2A- SLEEVE & LOCKNUTS
2B- SPRING CENTRE POST ANVIL
2C- PLAIN POST WITH SPRING CENTRE ANVIL
2D- FIXED POST
2E- CRANKED POST & SPRING CENTRE ANVIL		 2F- CRANKED POST & SPRING CENTRE ANVIL
2G- TILTING POST & SPRING CENTRE ANVIL
2H- FIXTURE

3- ARM
3A- SPRING CENTRE ANVIL & ADJUSTING SCREW
3B- LOOP ANVIL

4- SLIDING NOSE
ALL TO SUIT CUSTOMER'S REQUIREMENTS
