BS 641 table 5.

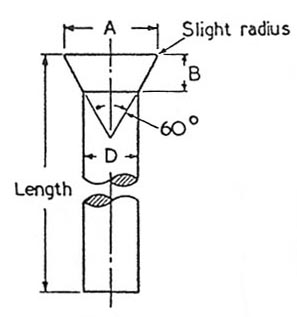

Countersunk Head Solid Rivet (60º)
Countersunk Head Solid Rivet (60º)
Standard Proportions:
A= 1.75 D
B= 0.65 D
B= 0.65 D
|
NOMINAL DIA.
|
HEAD DIA.
|
HEAD DEPTH
|
||||
|
D
|
A
|
B
|
||||
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
|
|
3/16
|
0.188
|
4.760
|
0.328
|
8.331
|
0.122
|
3.099
|
|
1/4
|
0.250
|
6.350
|
0.438
|
11.125
|
0.162
|
4.115
|
|
5/16
|
0.313
|
7.940
|
0.547
|
13.894
|
0.203
|
5.156
|
|
3/8
|
0.375
|
9.530
|
0.656
|
16.662
|
0.244
|
6.198
|
|
7/16
|
0.438
|
11.110
|
0.766
|
19.456
|
0.284
|
7.214
|
Materials available:
Most materials including Steel, Brass, Copper, Aluminium,
Aluminium Alloy and Stainless Steel (430 & 394 type).
Aluminium Alloy and Stainless Steel (430 & 394 type).
