BS 641 table 1.

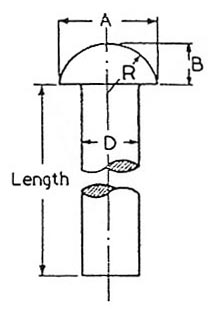

Snap (or Round) Head Solid Rivet
Snap (or Round) Head Solid Rivet
Standard Proportions:
A= 1.75 D
B= 0.75 D
R=0.885 D
B= 0.75 D
R=0.885 D
|
|
|
|
DEPTH |
OF HEAD |
||||
|
D
|
A
|
B
|
R
|
|||||
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
|
|
1/16
|
0.063
|
1.59
|
0.109
|
2.76
|
0.047
|
1.19
|
0.055
|
1.39
|
|
3/32
|
0.094
|
2.38
|
0.164
|
4.17
|
0.07
|
1.78
|
0.083
|
2.11
|
|
1/8
|
0.125
|
3.18
|
0.219
|
5.56
|
0.094
|
2.39
|
0.111
|
2.81
|
|
5/32
|
0.156
|
3.97
|
0.273
|
6.93
|
0.117
|
2.97
|
0.138
|
3.51
|
|
3/16
|
0.188
|
4.76
|
0.328
|
8.33
|
0.141
|
3.58
|
0.166
|
4.22
|
|
1/4
|
0.250
|
6.35
|
0.438
|
11.12
|
0.188
|
4.77
|
0.221
|
5.61
|
|
5/16
|
0.313
|
7.94
|
0.547
|
13.89
|
0.234
|
5.94
|
0.277
|
7.04
|
|
3/8
|
0.375
|
9.53
|
0.656
|
16.67
|
0.281
|
7.13
|
0.332
|
8.43
|
|
7/16
|
0.438
|
11.11
|
0.766
|
19.45
|
0.328
|
8.33
|
0.387
|
9.83
|
Materials available:
Steel, Brass, Copper, Aluminium,
Stainless Steel (430, 394 & 396 type) and Aluminium Alloy.
Stainless Steel (430, 394 & 396 type) and Aluminium Alloy.
